Description

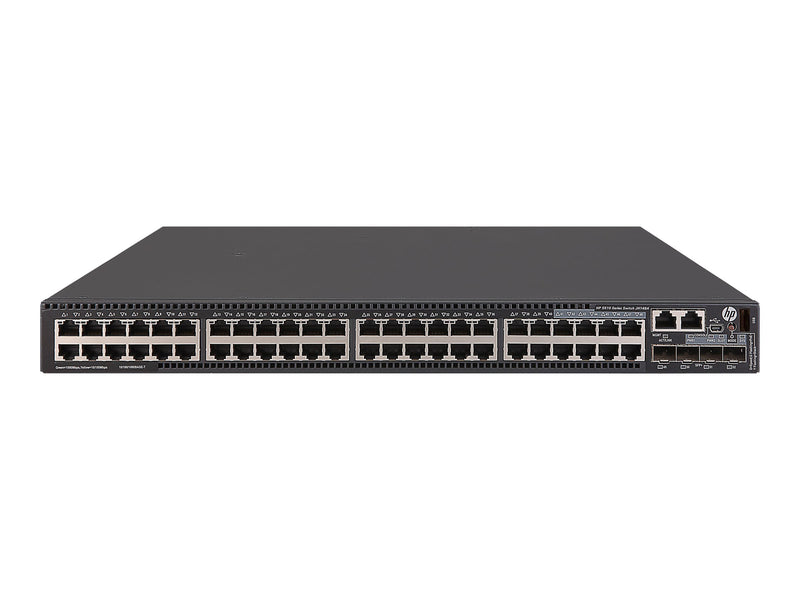

The HPE FlexNetwork 5510 JH148A is a Managed Switch that supports 48x 10/100/1000Base-T autosensing Ethernet PoE ports and 4 SFP+ ports. The HPE FlexNetwork 5510 JH148A is designed with four fixed 10GbE ports and supports additional modular uplinks, this switch can provide up to six 10GbE uplink ports. With complete IPv4/IPv6, OpenFlow, and MPLS/VPLS features, the series provides investment protection with an easy transition from IPv4 to IPv6 networks.
- Scalable with 10 Gigabit uplinks and 9-chassis IRF with up to 160 GB/s stacking bandwidth
- 40G QSFP+ ports for uplink or stacking
- 4 convenient built-in SFP+ 10GbE uplinks provide performance for bandwidth-hungry applications
- PoE+ for up to 30 Watts of PoE power per port on all ports simultaneously
- MAC sec support
| Brand | APC |
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 1440 W |
| Performance | Routing/switching capacity: 336 Gbps ? Throughput: 250 Mpps |
| Capacity | IPv4 routing table entries: 32768 ? IPv6 routing table entries: 16384 |
| Power | AC 120/230 V - power supply not installed |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44 cm x 36 cm x 4.37 cm |
