Description

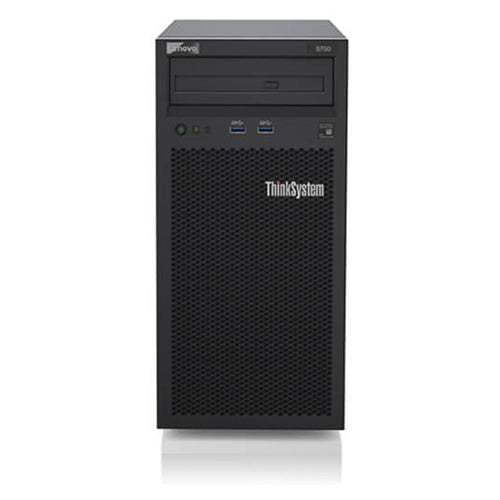

The Lenovo ThinkSystem ST250 7Y45A04AAU is a fully-featured, single-socket, easily-managed rackable tower server for the small-to-medium-sized business (SMB) or remote office/ branch office (ROBO) environment. It features a highly flexible design that deploys server performance where it's needed and adapts as requirements change over time. Expand storage configurations with up to 16x 2.5-inch hot-swappable HDDs/SSDs and an internal M.2 module, while protecting data with various RAID options.
• Enterprise capacity
• Enterprise flexibility and manageability
• Designed for ROBO use
• Enterprise-quality tower server
• The Intel Xeon E-2100 Series processors improves productivity by offering affordable single-socket system performance with 6-core processors with up to 3.8 GHz core speeds.
• Intelligent and adaptive system performance with Intel Turbo Boost Technology 2.0 allows processor cores to run at maximum speeds during peak workloads by temporarily going beyond processor thermal design power (TDP).
• Intel Hyper-Threading Technology boosts performance for multithreaded applications by enabling simultaneous multithreading within each processor core, up to two threads per core.
• Intel Virtualization Technology integrates hardware-level virtualization hooks that allow operating system vendors to better use the hardware for virtualization workloads.
• The server offers PCI Express 3.0 I/O expansion capabilities that increase the theoretical maximum bandwidth by almost 100% (8 GTps per link using 128b/130b encoding) compared to the PCI Express 2.0 (5 GTps per link using 8b/10b encoding).
| Form factor | Tower or 4U Rack. |
| Processor | Intel Xeon E-224G 6 Core 3.6GHz |
| Form Factor | Tower - 4U |
| Chipset | Intel C246 chipset |
| Memory protection | Error-correcting code (ECC) |
| Processor manufacturer | Intel |
| Processor model | E-2246G |
| Processor frequency | 3.6 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor family | Intel Xeon E |
| Processor cores | 6 |
| Processor cache | 12 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14nm |
| Processor threads | 12 |
| Maximum internal memory supported by processor | 128 |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory bandwidth supported by processor (max) | 41.6 GB/s |
| On-board graphics adapter model |
Intel UHD Graphics P630 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Power supply | 550 W |
| Chassis type | Tower (4U) |
| Rack mounting | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet interface type | Gigabit Ethernet |
| Width | 175 mm |
| Depth | 566 mm |
| Height | 430 mm |
| Weight | 23.6 kg |
