Description

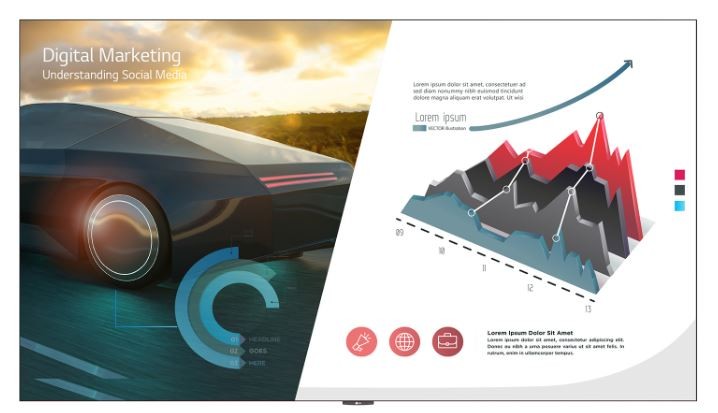

LG LED All-in-One Smart Series
- Pixel Pitch: 1.56 mm
- Screen Size: 136" (Full HD)
- Brightness: 500 nit
- Embedded System Controller
- Built-in Speaker
- Dedicated Accessories : Wall Mount, Motorized Stand (Optional)
| Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch (mm) | 1.56 |
| Module Dimensions (W x H, mm) | 250 x 281.25 |
| Screen Resolution (WxH) | 1,920 x 1,080 |
| Screen Dimension (W x H x D,mm) | 3,004.6 x 1692.1 x 36.5 (Thickest 70) |
| Screen Weight (kg) | 129 |
| No of Modules per Screen (W x H) | 12 x 6 (Total 72) |
| Screen Surface Area (㎡) | 5.06 |
| Physical Pixel Density (pixels/m²) | 409,600 |
| Flatness of Cabinet | ±0.2 mm |
| Cabinet Material | Aluminum |
| Service Access | Front |
| Brightness | 500 nit |
| Color Temperature (K) | 3,200 ~ 9,300 |
| Visual Viewing Angle (Horizontal/Vertical) | 160° x 160° |
| Brightness Uniformity | 98% |
| Color Uniformity | ±0.015Cx,Cy |
| Contrast Ratio | 3000:1 |
| Processing Depth (bit) | 16 (HDR10, HDR10 Pro) |
| Power Consumption (W/Screen, Max ) | 2,000 |
| Power Consumption (W/Screen, Avg ) | 800 |
| Power Consumption (W/m², Max ) | 395 |
| Power Consumption (BTU/h/Screen, Max ) | 6,824 |
| Power Consumption (BTU/h/Screen, Avg ) | 2,730 |
| Power Consumption (BTU/h/㎡, Max ) | 1,348 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | ≥2880 |
| Lifetime (Hours to Half Brightness) | 100,000 |
| Operating Temperature (°C) | 0℃ to +40℃ |
| Operating Humidity | <90%RH(without condensation) |
| IP rating Front / Rear | IP30 / IP20 |
